WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
WT-L4B
Description:
  • Simple control panel and circular handlebar for agile handling.

  • Flip-up armrests for easy entry and exit.

  • Comfortable seat that can be adjusted forward and backward to fit your body.

  • Stepless handlebar adjustment mechanism for better ergonomics.

  • Fully automatic electromagnetic brake for riding safety.

  • Front and rear lighting systems ensure safe nighttime riding.

  • Front and rear bumpers provide additional safety.

  • feature
  • Specifications
  • Products illustration
  • Product GIF
  • WT-L4B

    Medical Device Manufacturing License No. 002992, issued by the Department of Health

    Product Features

    • Simple control panel and circular handlebar for agile handling.

    • Flip-up armrests for easy entry and exit.

    • Comfortable seat that can be adjusted forward and backward to fit your body.

    • Stepless handlebar adjustment mechanism for better ergonomics.

    • Fully automatic electromagnetic brake for riding safety.

    • Front and rear lighting systems ensure safe nighttime riding.

    • Front and rear bumpers provide additional safety.


  • Dimensions (L × W × H) 1600*730*1350 mm
    Overall Vehicle Weight 161kg
    Battery 12V/75AH*2、12V/80AH*2
    Controller 120A
    Front Wheel Size 365mm / 14.3"
    Rear Wheel Size 365mm / 14.3"
    Maximum Speed     10 km/h
    Safe Climbing Angle 10°
    Maximum Load Capacity 181kg
    Motor 950W
    Battery Charger 8A
    Minimum Turning Radius 2080mm

  • WT-L4B Specifications



    Overall length

    1600mm

    Overall width

    730mm

    Overall height

    1350mm




    Overall weight

    161kg

    Battery

    12V/75AH*2
    12V/80AH*2

    Controller

    120A



    Front Wheel Size

    365mm/14.3"

    Rear Wheel Size

    365mm/14.3"

    Maximum Speed

    10km/h



    Safe Climbing Angle

    10°

    Maximum Load Capacity

    181kg

    Motor

    950W


    Battery Charger

    8A



    Minimum Turning Radius

    2080mm





  • Safety, convenience, and comfort are standard

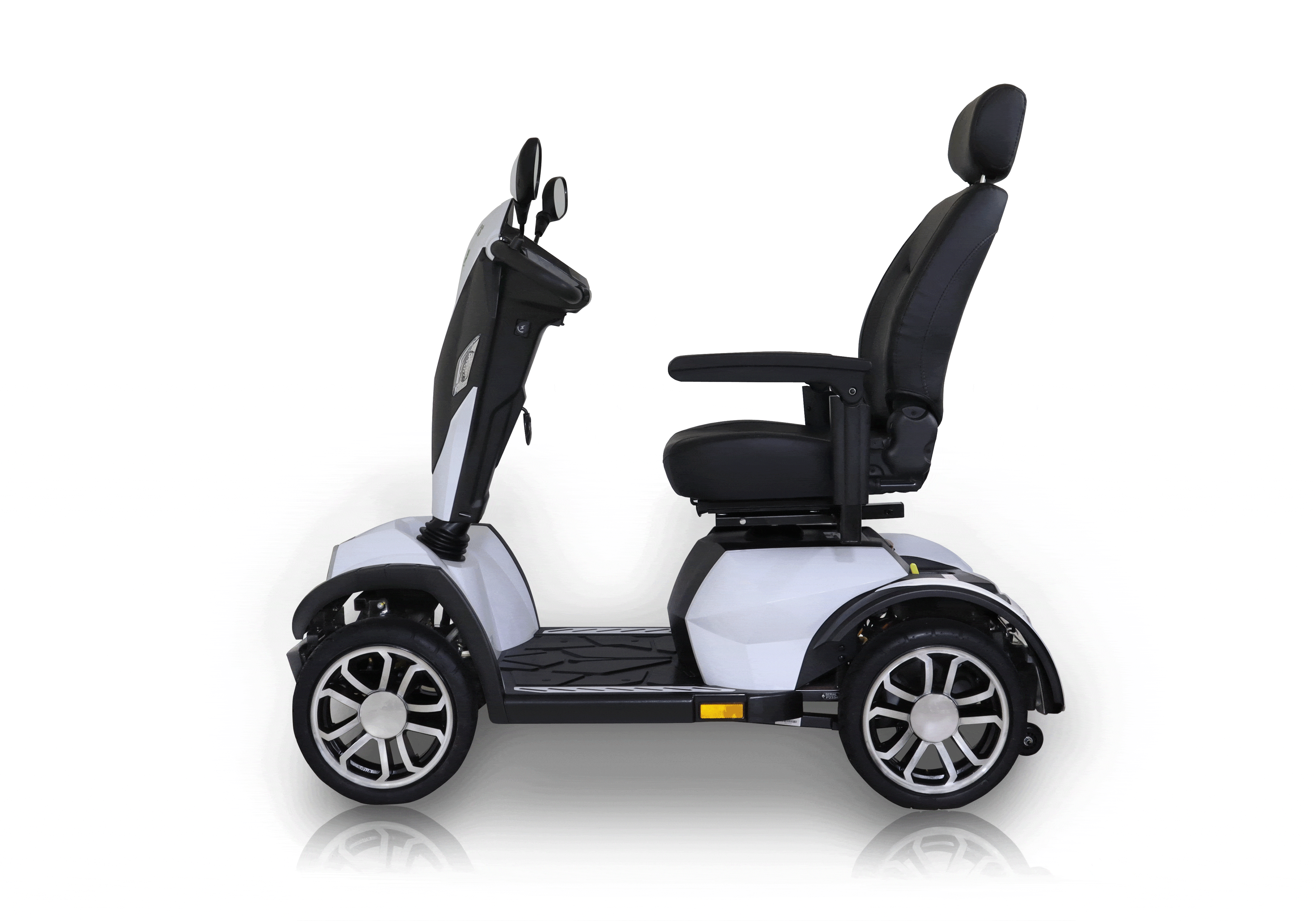

    The seat armrests can rotate 90 degrees.
    This allows for easy boarding and exiting without having to climb over.

    Stepless handlebar adjustment mechanism for better ergonomics.
    Flip-up armrests for easy access.


    Safe and comfortable seat, adjustable forward and backward for the optimal riding position.
    The seat angle can be rotated to make it easy for the user to get on and off.

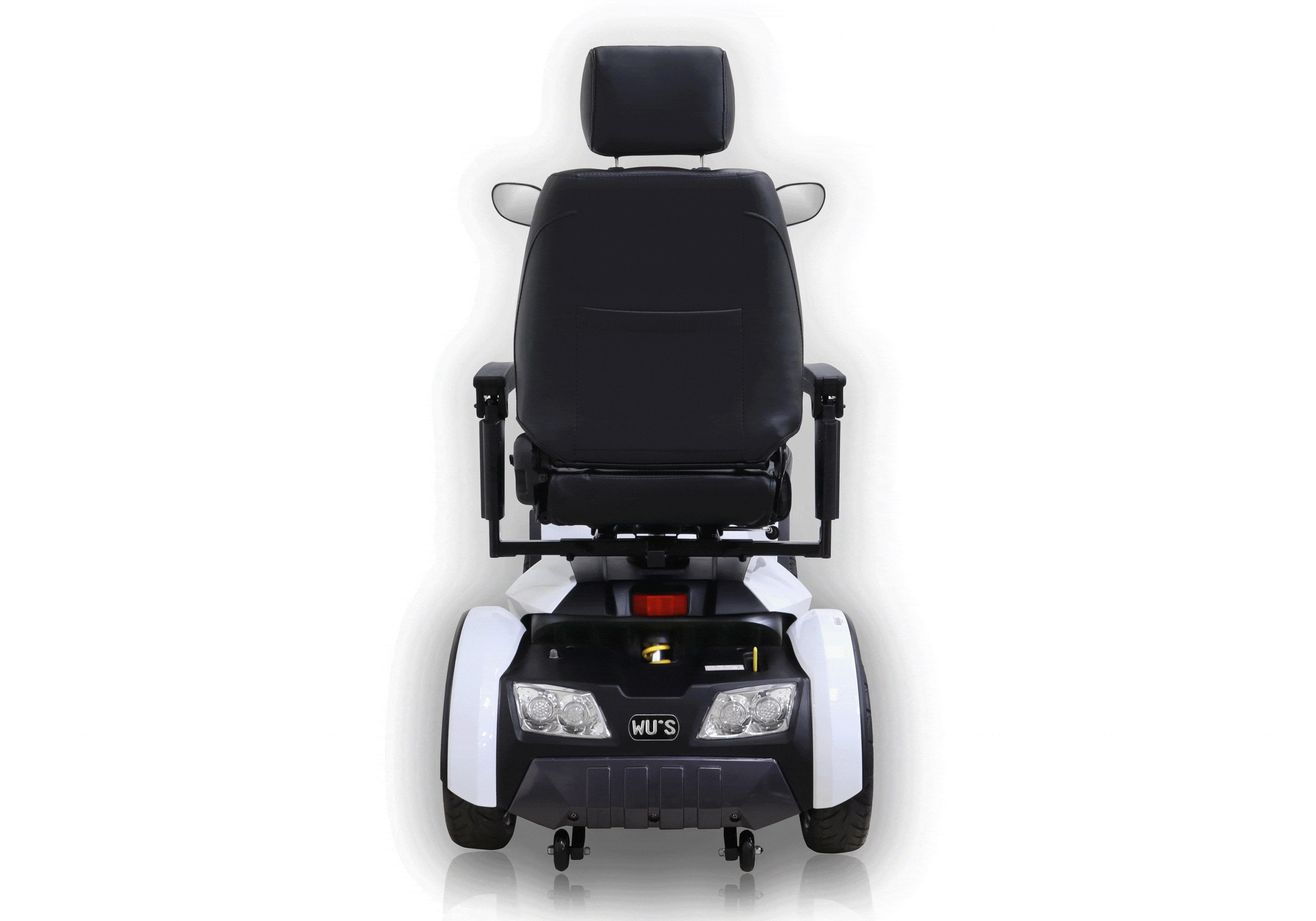

    Bright front and rear headlights ensure safe nighttime riding.

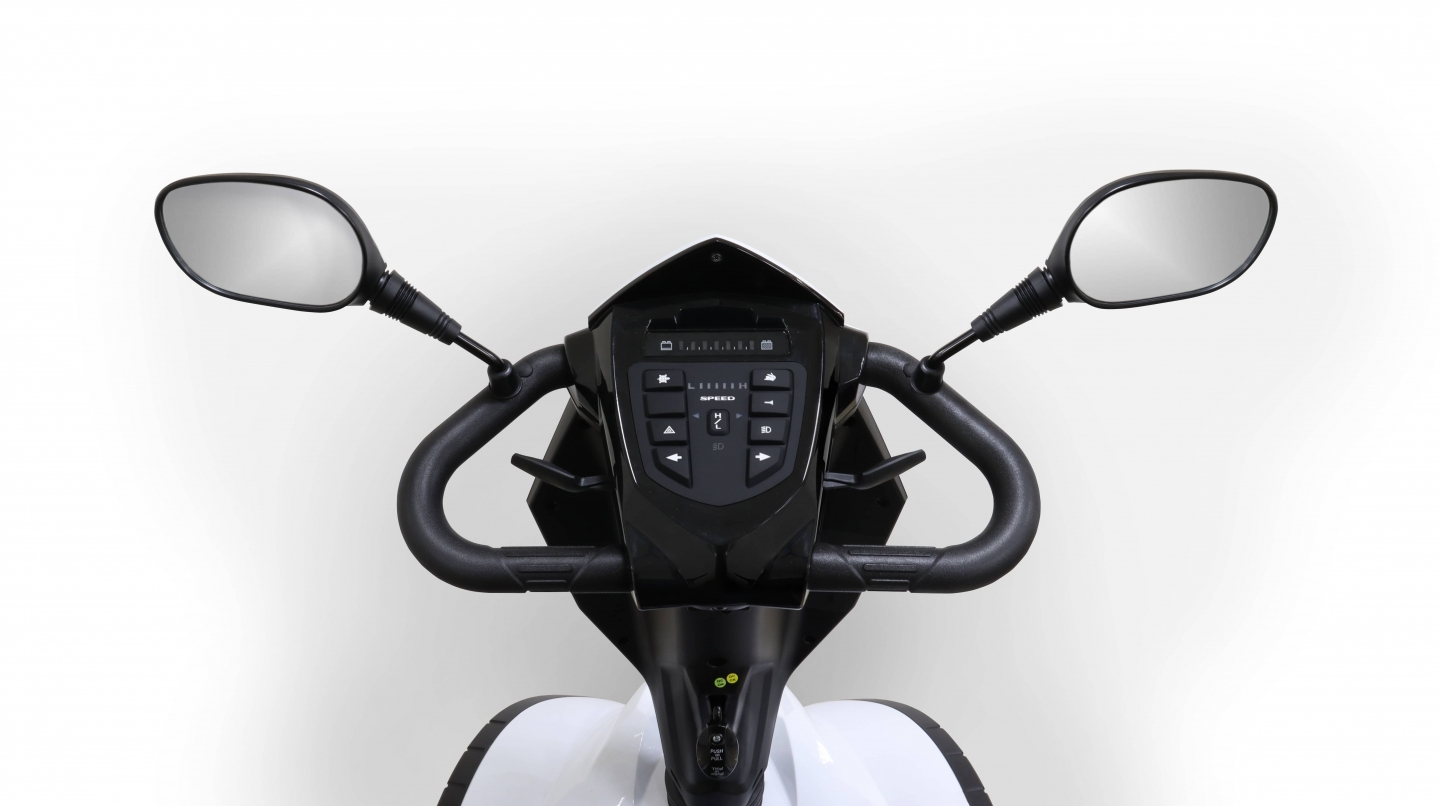

    A simple control panel and circular handlebar offer nimble handling.

  • feature

    WT-L4B

    Medical Device Manufacturing License No. 002992, issued by the Department of Health

    Product Features

    • Simple control panel and circular handlebar for agile handling.

    • Flip-up armrests for easy entry and exit.

    • Comfortable seat that can be adjusted forward and backward to fit your body.

    • Stepless handlebar adjustment mechanism for better ergonomics.

    • Fully automatic electromagnetic brake for riding safety.

    • Front and rear lighting systems ensure safe nighttime riding.

    • Front and rear bumpers provide additional safety.


  • Specifications
    Dimensions (L × W × H) 1600*730*1350 mm
    Overall Vehicle Weight 161kg
    Battery 12V/75AH*2、12V/80AH*2
    Controller 120A
    Front Wheel Size 365mm / 14.3"
    Rear Wheel Size 365mm / 14.3"
    Maximum Speed     10 km/h
    Safe Climbing Angle 10°
    Maximum Load Capacity 181kg
    Motor 950W
    Battery Charger 8A
    Minimum Turning Radius 2080mm
  • Products illustration

    WT-L4B Specifications



    Overall length

    1600mm

    Overall width

    730mm

    Overall height

    1350mm




    Overall weight

    161kg

    Battery

    12V/75AH*2
    12V/80AH*2

    Controller

    120A



    Front Wheel Size

    365mm/14.3"

    Rear Wheel Size

    365mm/14.3"

    Maximum Speed

    10km/h



    Safe Climbing Angle

    10°

    Maximum Load Capacity

    181kg

    Motor

    950W


    Battery Charger

    8A



    Minimum Turning Radius

    2080mm





  • Product GIF
    Safety, convenience, and comfort are standard
    The seat armrests can rotate 90 degrees.
    This allows for easy boarding and exiting without having to climb over.

    Stepless handlebar adjustment mechanism for better ergonomics.
    Flip-up armrests for easy access.


    Safe and comfortable seat, adjustable forward and backward for the optimal riding position.
    The seat angle can be rotated to make it easy for the user to get on and off.



    Bright front and rear headlights ensure safe nighttime riding.
    A simple control panel and circular handlebar offer nimble handling.
